New double-hinge drawbar providing greater coupling flexibility.

"> Zoom
Zoom
They are lighter and easier to handle, equipped with a locking system and a safety chain.

"> Zoom
Zoom
Zoom

Machinery transport

The TPF “green spaces” machinery transport trailer are designed for transporting mini-excavators, rollers or other machines. Its tandem or triple axle design offers sizes and payloads adapted to the machines to be transported.

In addition to their technical abilities, machine transport trailers come as standard with single-piece sides, a full width wooden floor, rear automatic loading jacks and width-adjustable ramps.

This “machinery transport trailer” kit is proposed with an adjustable drawbar or a straight drawbar.

Our other solutions for machine or car transport include: car transport trailer or tipping bed trailer or also the sliding bed trailer.

Designed and made in France
Informations Contact us

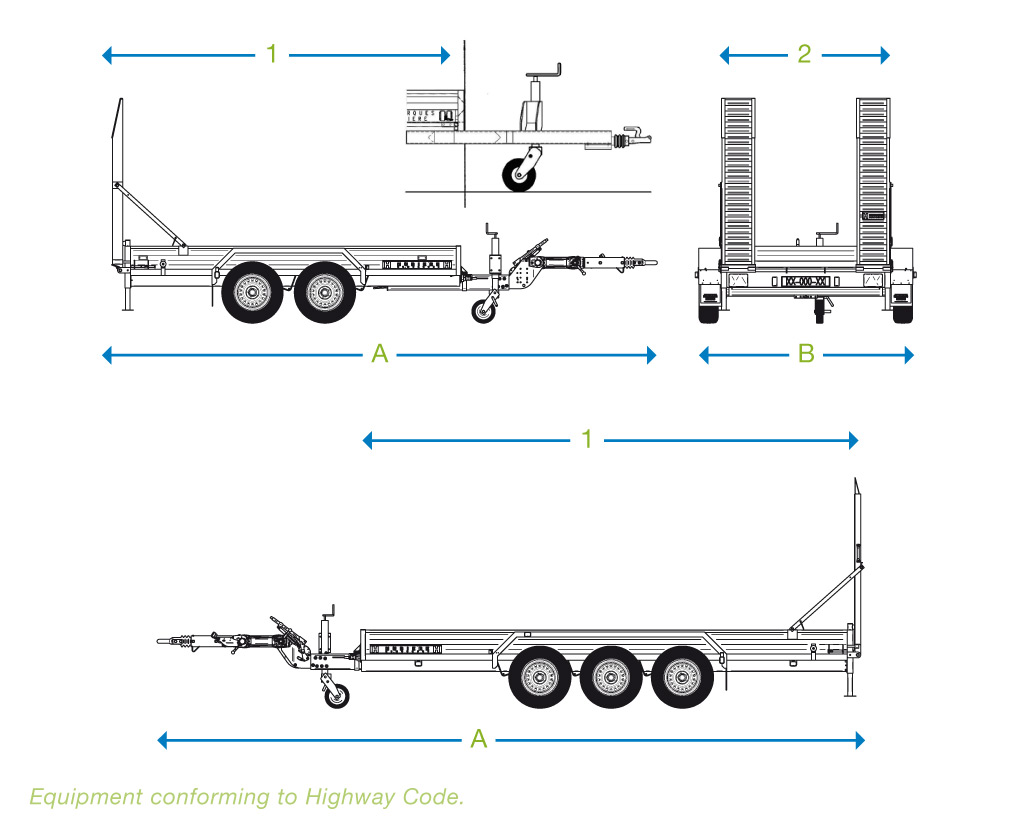

  • Schéma technique

    Characteristics

    • Welded metal chassis, hot-dip galvanized
    • One piece sides.
    • Removable fenders
    • Adjustable drawbar or straight drawbars.
    • Ring coupling 68 x 42 on adjustable drawbar.
    • 50 diameter ball coupling on straight drawbar.
    • Type-approved recessed lighting.
    • Inertia brake with auto-reverse.
    • Full width wooden floor
    • Tie downs
    • Large section removable jockey wheel
    • Automatic rear loading jacks
    • Aluminium ramps.

    Options

    • Spare wheel.
    • Spare wheel bracket
    • Adjustable load stop with 3 positions.
    • Tie down kit with 4 chains.
    • 12-24 V LED lights. With 13 and 15 pin connectors.
    • OPTIMA extra-low adjustable parallelogram hitch. (OPTIMA drawbar attaching height 250 mm min – 800 mm max.)
