Tipper trailer
XXL (extra-large)

The PLTB extra-large tipper flat top is particularly popular because of its tipping flat top capable of loading particularly bulky equipment.
This flat top tipper is based on a double or triple axle and we propose sizes and payloads adapted to every type of use.

In addition to having many technical qualities, the flat top tippers offer as standard tipping by a manual hydraulic pump, and a full width rear loading ramp. This “extra-large flat top tipper trailer” offers many alternatives (fold-down and removable sides, tie down rack, adjustable parallelogram hitching…).

The extra-large flat top tipper is also available in many alternative designs as a large tipper flat top or a large tipper trailer or an extra-large tipper trailer or tipper box trailer.

Designed and made in France
Informations Contact us

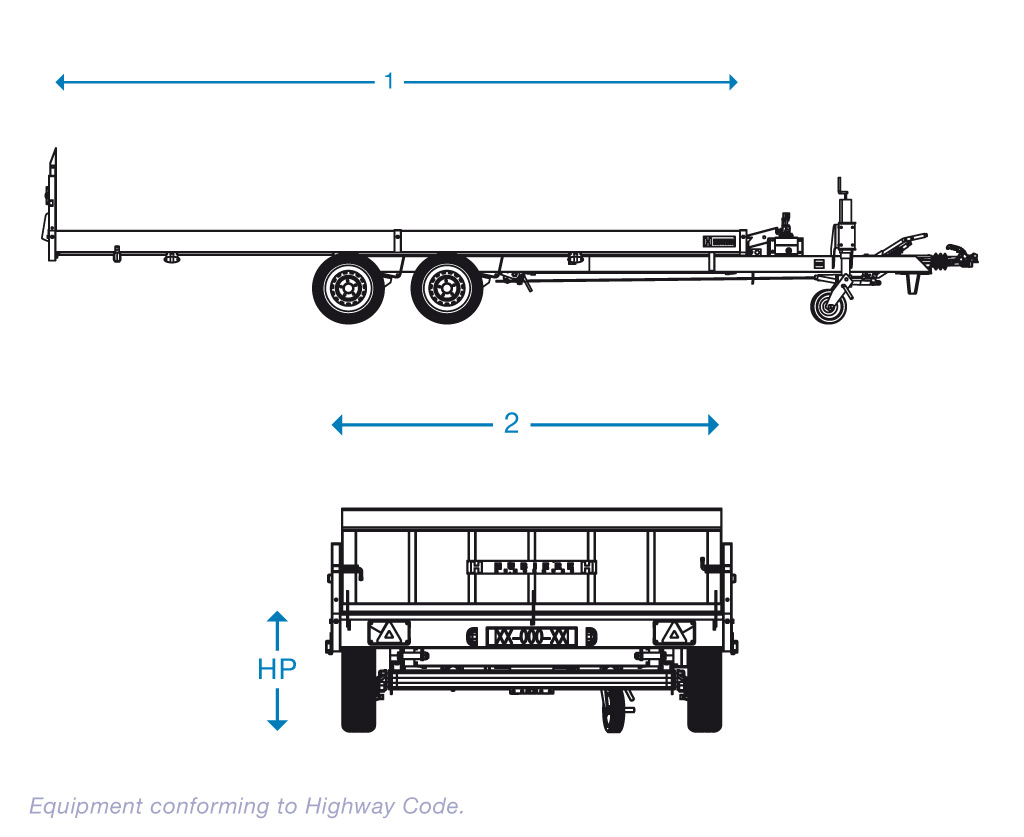

  • Schéma technique

    Characteristics

    • Welded metal chassis, hot-dip galvanized
    • Flat bed without sides.
    • Hydraulic flat top tipping
    • Spare wheel bracket
    • Rear ramp, height 0.60 m
    • Type-approved recessed lighting.
    • Inertia brake with auto-reverse.
    • Non-skid wooden floor.
    • Large section jockey wheel

    Options

    • Spare wheel.
    • Fixed front and folding sides rack, height 0.20 m.
    • Removable and folding sides, 0.40 m high
    • Cage sides, height 0.80m (slides mandatory)
    • Winch bracket.
    • Manual winch.
    • Winch cable guide (mandatory if sides).
    • Adjustable wheel chocks every 15 cm over 1 m.
    • Tie down rings (per pair).
    • Antitheft device.
    • OPTIMA extra-low adjustable parallelogram hitch.
      GVW 2000/2500 kg / MIN 300 mm / MAX 790 mm
      GVW 3200/3500 kg / MIN 300 mm / MAX 815 mm
