Remorque porte nacelle TPN
TPN
Zoom
Zoom
Zoom
Zoom

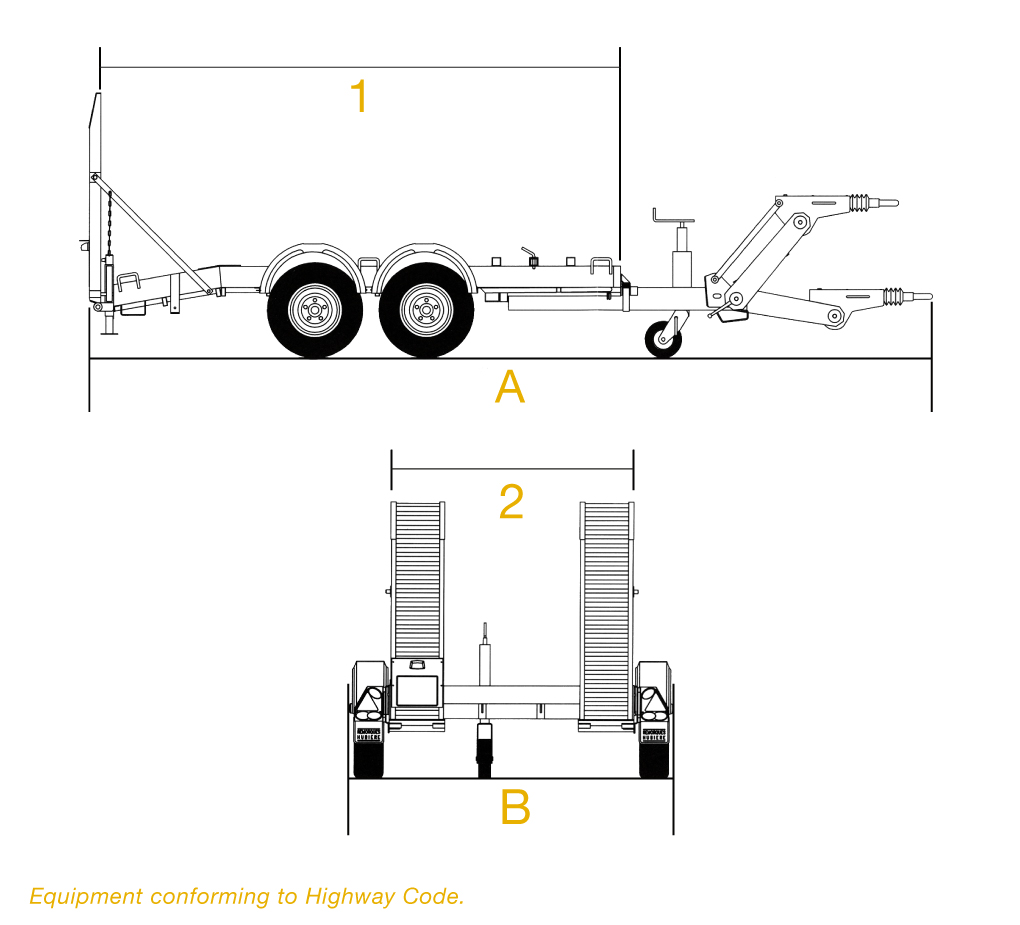

Platform transport trailer

The platform transport trailer is designed for transporting work platforms and compact machines of all types.

With a tandem axle, suitable sizes and payload capacity, the platform carrier trailer comes as standard with a load stopping bar, aluminium ramps adjustable for width and a new generation height-adjustable drawbar providing a considerable coupling amplitude.

Discover our other specific public works (TP) large or extra-large machine transport trailers.

Designed and made in France

  • Caracteristiques

    • Welded metal chassis, hot-dip galvanized
    • Removable polypropylene fenders
    • Reinforced aluminium ramps adjustable for width.
    • Parallelogram height-adjustable drawbar
    • Ring tongue, 68 x 42.
    • European model lighting, recessed on dampers
    • Inertia brake with auto-reverse brakes.
    • Full width wooden floor with non-skid ribbed aluminium running track.
    • Rear cut section
    • Tie-down points in chassis and on the sides.
    • Large section removable jockey wheel
    • Automatic rear loading jacks
    • Adjustable load stop with 3 positions.

    Options

    • Spare wheel + spare wheel bracket
    • Ball hitch, Ø 50.
    • Tie down kit with 4 chains.
    • OPTIMA extra-low adjustable parallelogram hitch.
      Coupling height 0.30 min – 0.80 m max.
    • 12-24 V LED lights. With 13 and 15 pin connectors.
